Measurements

ID: 33mm
OD: 35.5mm
Glass Diameter Φ: 23.5mm
height (inside): 7.8mm
Height (outside): 9mm
Access angle: 29°

Exceptional Imaging Quality

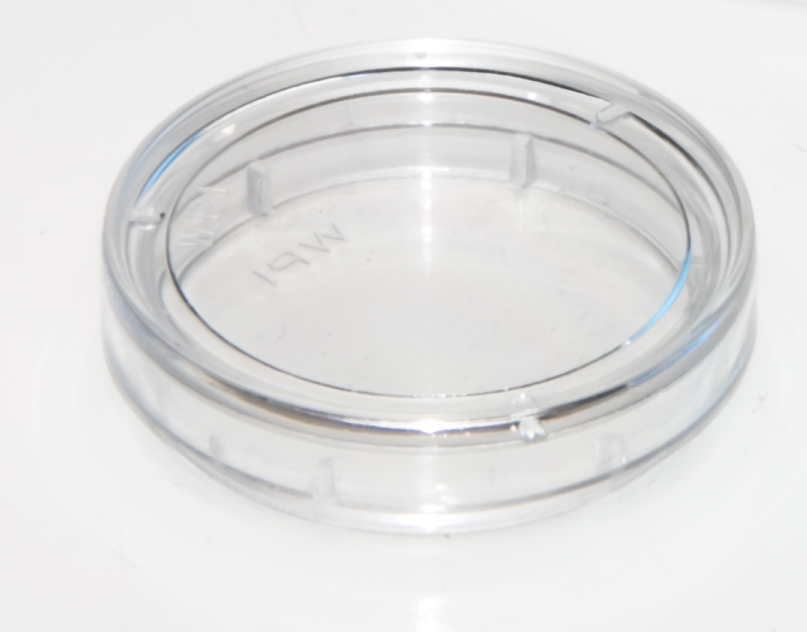

WPI’s FluoroDish™ tissue culture dishes are now available in a larger range of sizes and coatings. These tissue culture grade polystyrene dishes provide exceptional imaging quality for many applications requiring the use of inverted microscopes such as high resolution image analysis, microinjection and electrophysical recording of fluorescent-tagged cells.

Specially Formulated Adhesive

FluoroDish uses a specially formulated adhesive that is optically clear and durable. Tests by an independent laboratory have shown that the 96-hour surviving rate of embryos is 100% when kept in FluoroDish, substantially better than some other brands. The bottom glass has superior UV transmission (30% transmission at 300nm, compared to less than 7% for the most popular German glass). Stringent quality control ensures that glass thickness stays within the 0.17±0.01 mm range.

Excellent for Both Classical and Fluorescence Microscopy

Each WPI dish has a flat (0.17mm thick) optical quality glass bottom, allowing the use of a short objective working distance, large numerical aperture (NA), and a high magnification (up to 100x). The larger NA and higher magnification provide superior quality imaging for both classical and fluorescence microscopy. Higher effective NA yields brighter images for fluorescence and higher resolution in Image Analysis. The glass bottom permits the use of immersion objectives with medium such as water, glycerin or oil for the highest magnification possible. To optimize heat exchange, WPI’s glass-bottom dish is designed to be flush (flat) with the microscope stage or heating unit, therefore eliminating the air gap that exists with modified plastic dishes in which a glass cover slip has been inserted.

Materials

An inner well is created within the dish by the glass bottom and the tissue culture grade polystyrene which forms the sides of the dish. All WPI FluoroDish cell culture dishes have the advantage of good UV transmission bottom glass. They are individually packed and gamma sterilized.

Features

The 35mm dish has outside dimensions similar to that of a Corning 35mm dish and has ø23.5 mm glass window. Most heaters and perfusion adapters designed for the Corning 35mm dish will also fit this FluoroDish. The poly-D-lysine coating has been reported to improve the adhesion of neuron cells.
